CRATE DOLLY SOLUTIONS

Crate Dollies for Efficient Material Handling

Move compatible plastic crates through warehouses, production areas and retail distribution with low-profile dollies designed for stable positioning and smooth mobility. Choose a frame size and caster configuration matched to your container footprint, loaded weight and operating route.

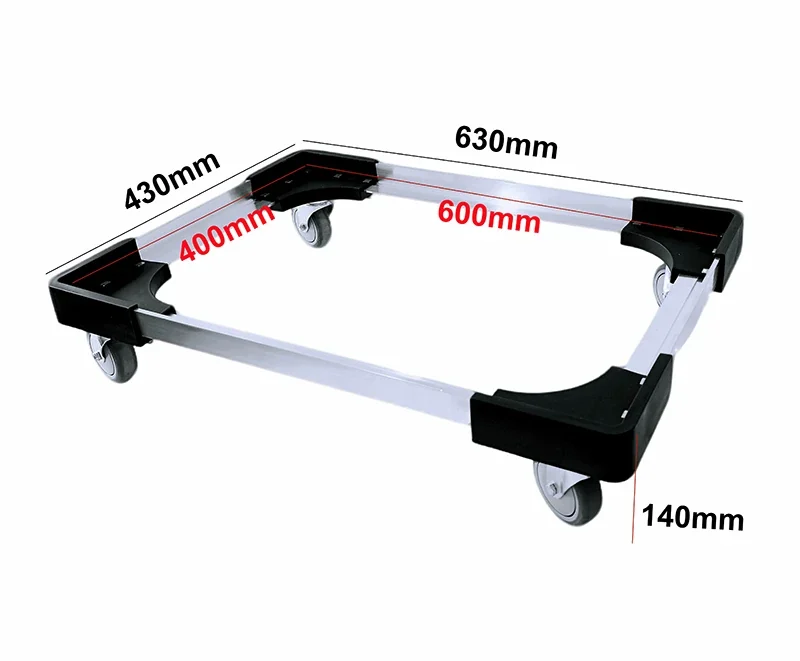

Aluminum crate dolly with 600 by 400 millimeter locating area and dimensions

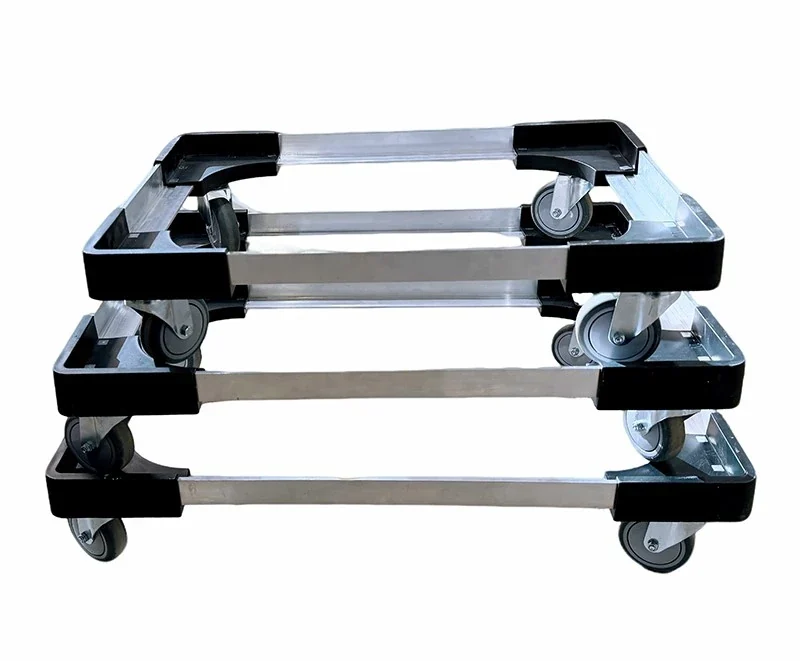

Stackable aluminum crate dollies with four swivel casters

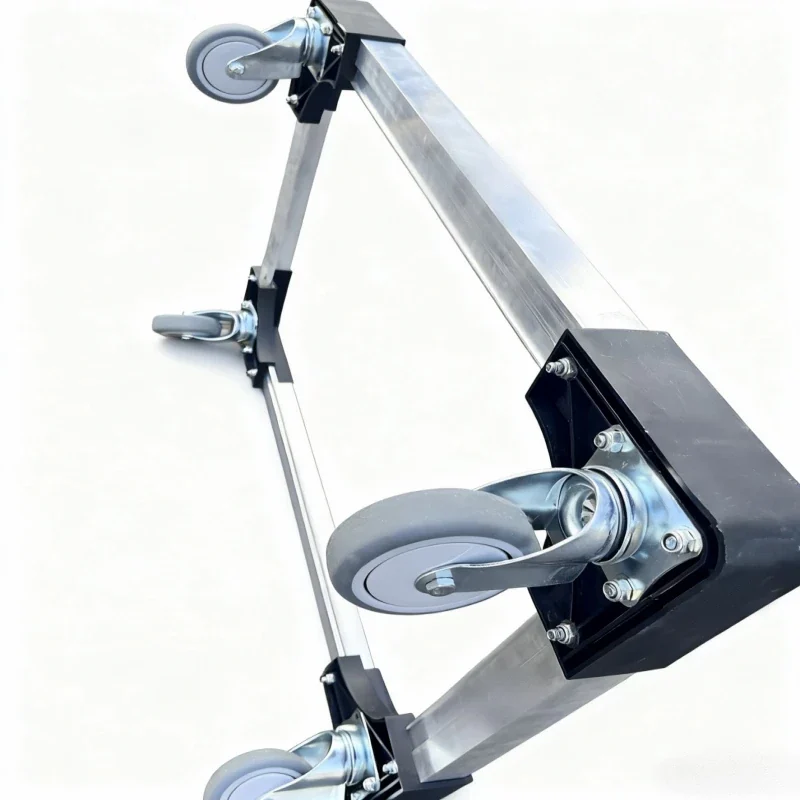

Close-up of swivel caster assembly on an aluminum crate dolly

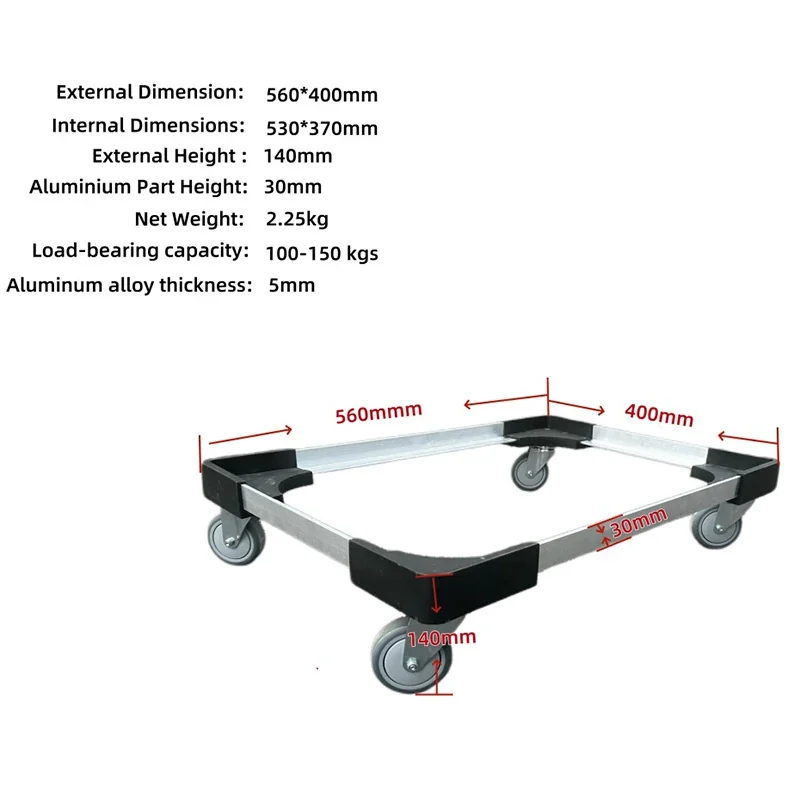

Compact aluminum crate dolly with dimensions and 100 to 150 kilogram load rating

Crate Dolly Solutions for Internal Logistics

KEYUN crate dollies provide mobile bases for compatible reusable crates and containers used in receiving, production supply, order picking, warehouse transfer and retail replenishment. Low-profile platforms help teams move loaded crates between operating stages without repeatedly lifting or transferring their contents.`

The series includes lightweight aluminum-frame designs in multiple footprints and load ranges. Each model should be selected according to the container base, total loaded weight, floor surface, turning space and operating route. Send us your crate drawing or bottom dimensions and we will help check compatibility.

  • Locating frame sizes for compatible plastic crates

  • Four swivel casters for multidirectional movement

  • Stackable open-frame structure for compact storage

  • Lightweight aluminum-alloy construction

Choose Your Aluminum Crate Dolly

Compare three frame sizes and select the locating area and load range that match your reusable containers.

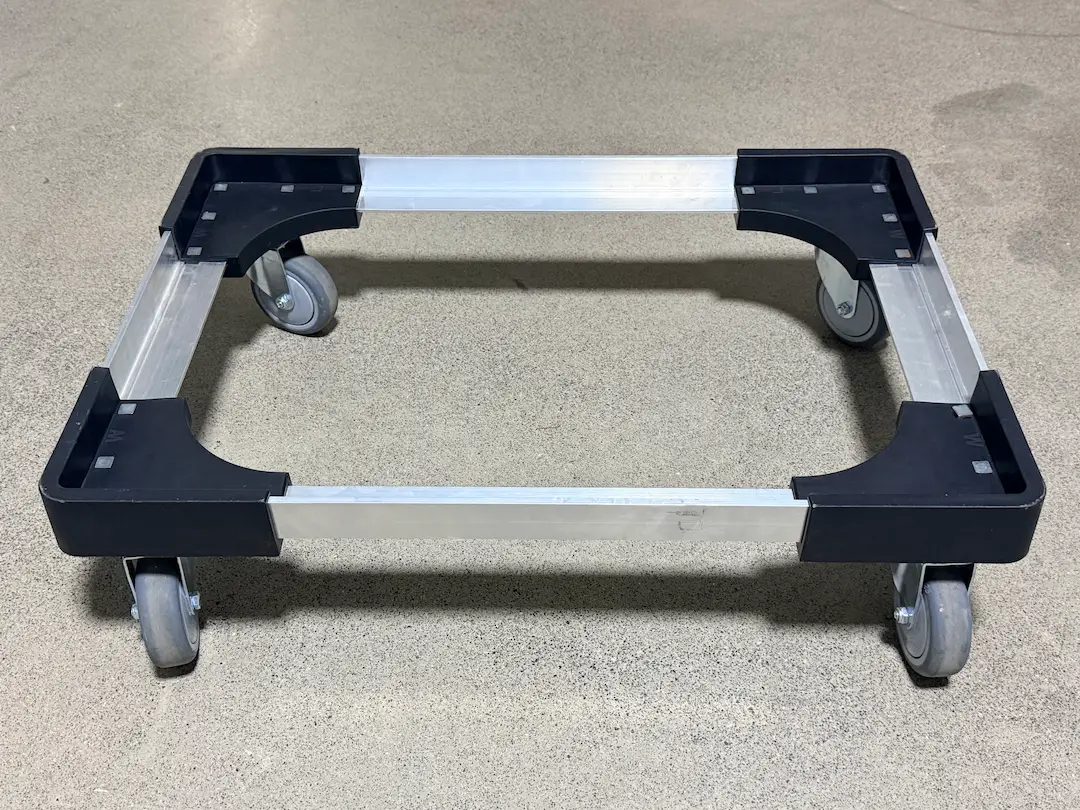

QYWG6848 aluminum crate dolly with 680 × 480 mm frame

QYWG6848 Aluminum Crate Dolly

680 × 480 mm frame with a 650 × 450 mm locating area. 140 mm high, 2.40 kg, with a representative load capacity of 150–200 kg.

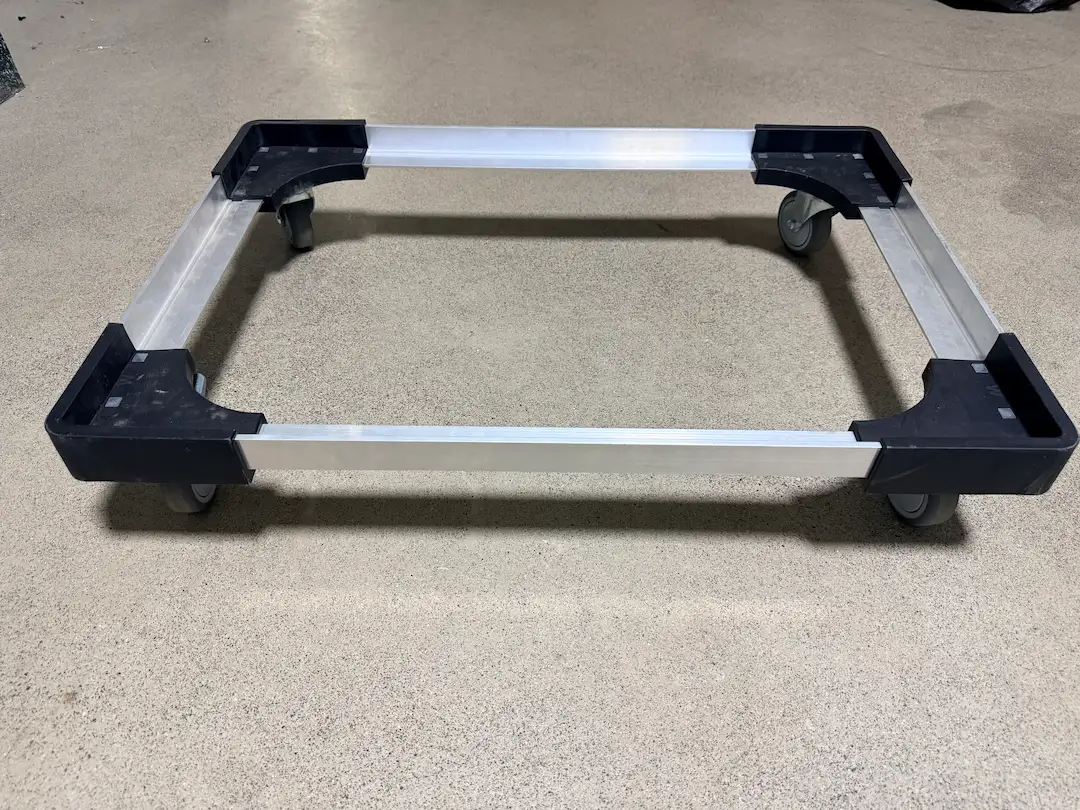

QYWG6343 aluminum crate dolly with 630 × 430 mm frame

QYWG6343 Aluminum Crate Dolly

630 × 430 mm frame with a 600 × 400 mm locating area. 140 mm high, 2.35 kg, with a representative load capacity of 120–180 kg.

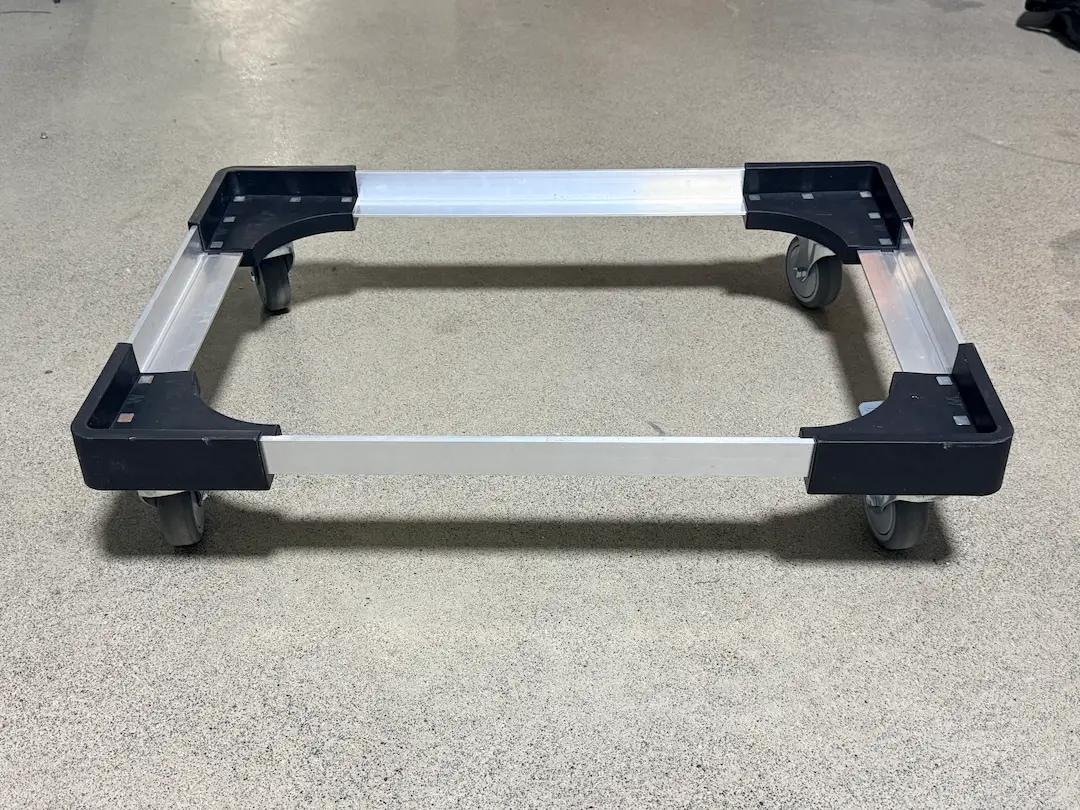

QYWG5640 compact aluminum crate dolly with 560 × 400 mm frame

QYWG5640 Compact Aluminum Crate Dolly

560 × 400 mm compact frame with a 530 × 370 mm locating area. 140 mm high, 2.25 kg, with a representative load capacity of 100–150 kg.

How to Choose the Right Crate Dolly

Match the dolly to the complete container system instead of selecting by external size alone.

Match the Crate Footprint

Check the crate’s bottom dimensions, corner geometry and locating surfaces against the dolly’s internal area.

Confirm Total Loaded Weight

Calculate the combined weight of the crate, contents and any approved stack before choosing a load range.

Review the Floor Surface

Wheel material and diameter should suit the floor condition, joints, thresholds and debris level along the route.

Plan Directional Control

Swivel-caster arrangements support multidirectional movement, while route layout affects the preferred control setup.

Check Working Height

Include the dolly height when evaluating workstation ergonomics, storage clearances and line-side access.

Consider Empty Storage

Review whether empty dollies can be stacked and how much space is available in return and storage areas.

Aluminum Crate Dolly Series Specifications

Compare the three available frame sizes, locating areas and load ranges. Select a model to view complete specifications and confirm crate compatibility before ordering.

Product Model External Dimensions (mm) Internal Locating Area (mm) Overall Height (mm) Net Weight (kg) Load Capacity (kg)

QYWG6848
 		680 × 480 650 × 450 140 2.40 150–200

QYWG6343
 		630 × 430 600 × 400 140 2.35 120–180

QYWG5640
 		560 × 400 530 × 370 140 2.25 100–150

From Receiving to Empty-Dolly Return

Use a compatible crate dolly to move reusable containers through receiving, production, picking and dispatch while reducing unnecessary lifting and product transfers.

Receiving & Put-Away

Move incoming containers from unloading and inspection areas to temporary storage or designated warehouse locations.

Production Supply

Deliver parts, components and materials to work cells while keeping the container mobile and accessible.

Picking & Dispatch

Transfer loaded crates between storage, picking, sorting, packing and dispatch areas.

Stack & Return

Stack suitable empty dollies and return reusable packaging to the next collection, filling or distribution stage.

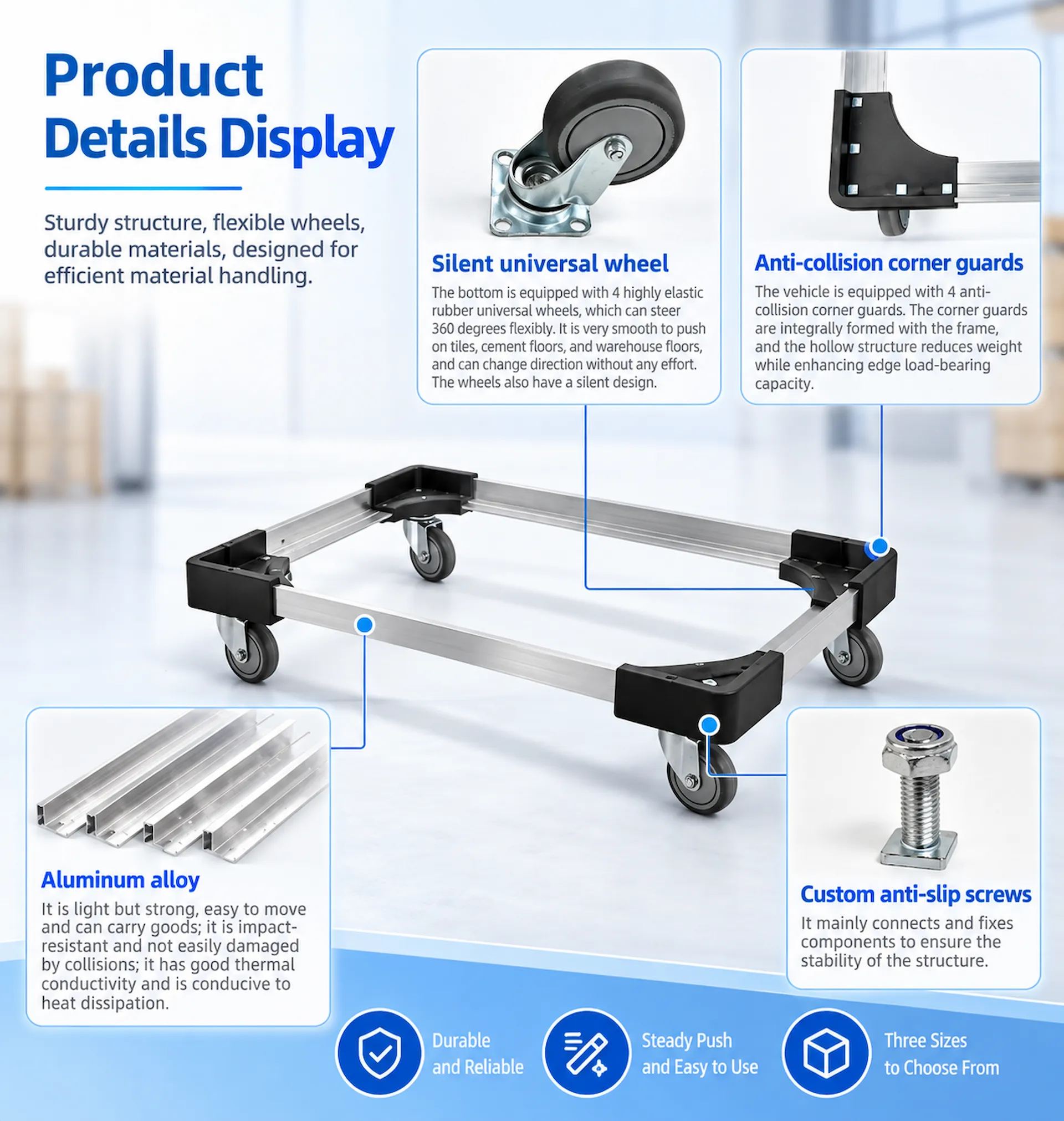

Aluminum crate dolly showing swivel casters, molded corner guards, aluminum rails and fastening hardware

Built for Smooth, Stable Crate Movement

ALUMINUM CRATE DOLLY DETAILS

KEYUN aluminum crate dollies combine lightweight hollow aluminum-alloy rails with four swivel rubber casters and molded corner guards. The casters rotate 360 degrees to support flexible movement through warehouse aisles, production areas and temporary staging locations.

The molded corner guards help locate compatible crate bases while protecting the exposed frame corners during routine handling. Mechanical fasteners secure the rails and caster assemblies, making the main connection points easier to inspect during regular maintenance.

  • Four 360-degree rubber swivel casters
  • Molded corner guards for positioning and protection
  • Lightweight hollow aluminum-alloy frame

  • 300 kg Static Load Test

Built for Loads Up to 300 kg

STRONG LOAD CAPACITY

The reinforced aluminum frame and four swivel casters provide stable movement for loaded crates. Selected configurations support loads up to 300 kg for in-plant transport, storage and distribution.

  • Strong, lightweight aluminum frame
  • Four 360° swivel casters
  • Three sizes for different crate footprints
Aluminum crate dolly load test with warehouse transport and product distribution applications

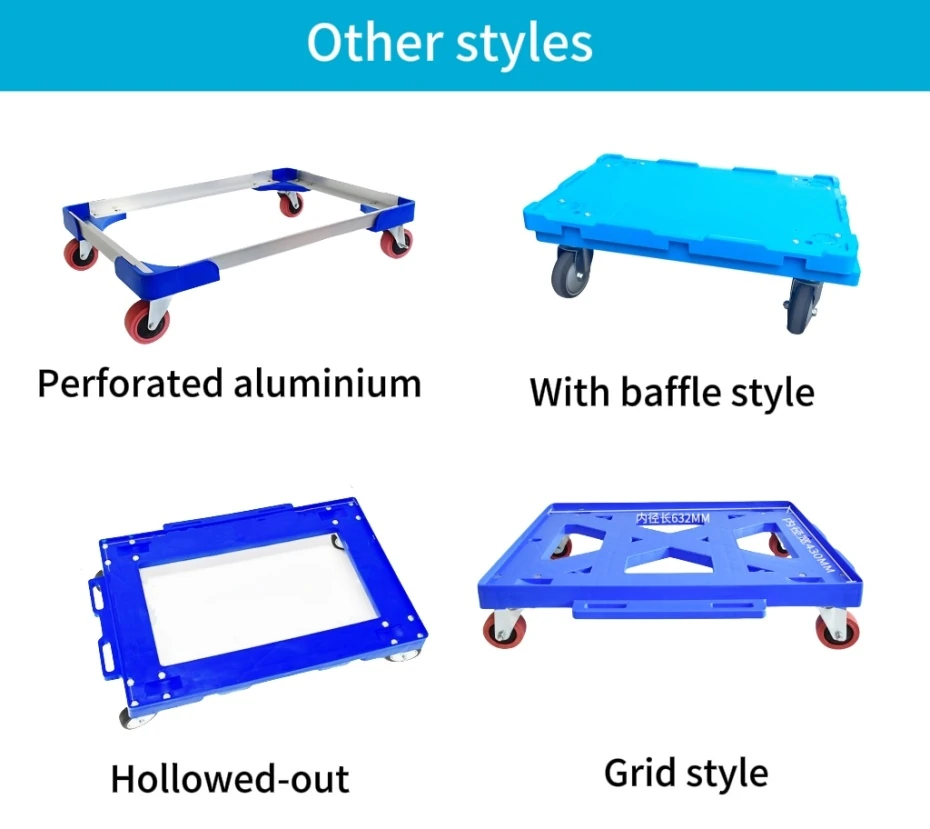

Crate dolly styles including open aluminum frames and platform dollies

More Crate Dolly Configurations

In addition to the three featured aluminum-frame sizes, different frame and platform styles can be reviewed for your crate base, load and handling route.

  • Open aluminum-frame designs

  • Perforated platform options

  • Raised edges for crate positioning

  • Size and caster options available

Crate Dolly Frequently Asked Questions

Find answers about crate compatibility, frame sizes, load capacity, casters, empty storage and ordering.

Aluminum crate dollies move compatible plastic crates through warehouses, production areas, stockrooms and distribution facilities while reducing repeated manual lifting.

Match the crate’s bottom dimensions and corner geometry with the dolly’s internal locating area. Send us a drawing or base photograph for compatibility checking.

Selected configurations support loads up to 300 kg. Final capacity depends on the model, complete loaded weight, caster configuration, floor condition and operating route.

The dollies use four 360-degree swivel rubber casters for multidirectional movement through suitable warehouse and production floors.

Compatible open-frame dollies can be stacked when empty to reduce the space required for storage and return handling.

Yes. Provide the crate dimensions, required load, quantity, application and destination so we can review customization and sample availability.

REQUEST PRODUCT INFORMATION

Find the Right Crate Dolly for Your Operation

Tell us your crate base dimensions, total loaded weight, floor conditions and required quantity. KEYUN will help match the frame size, locating area and caster configuration to your application.

Include your destination country and expected delivery schedule so we can confirm availability and prepare an export quotation.
